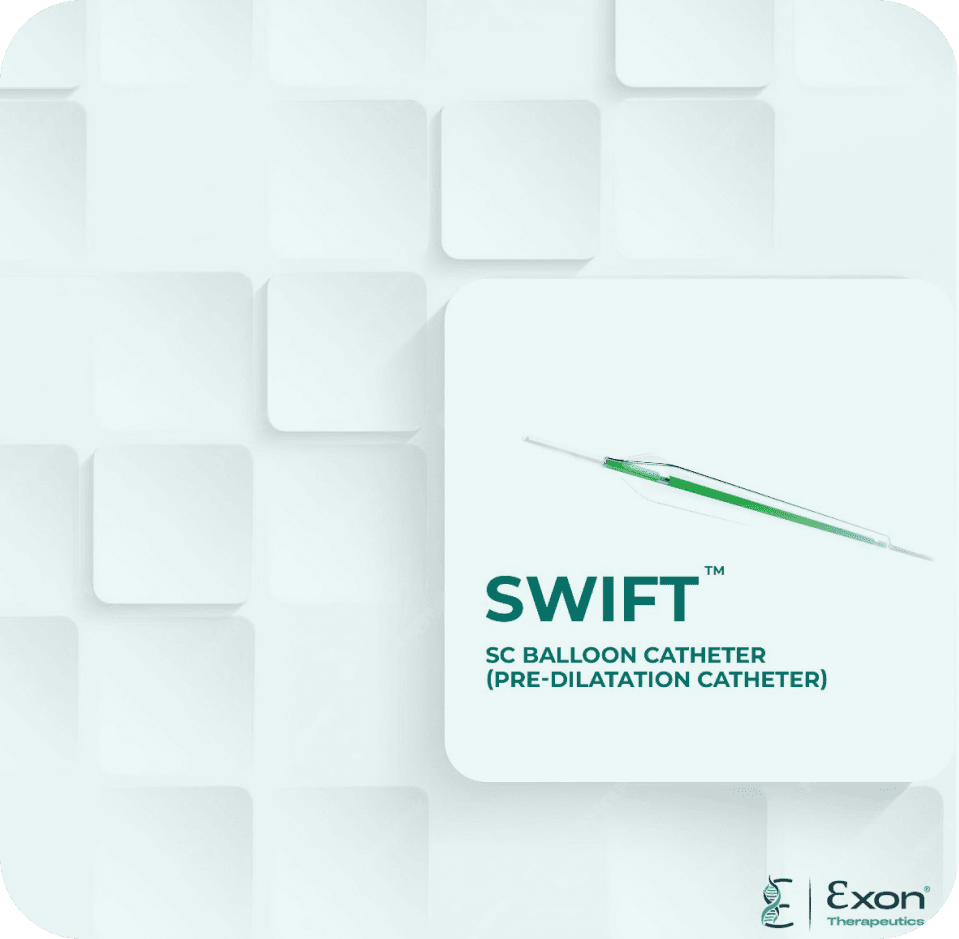

SWIFT SC BALLOON CATHETER (PRE - DIALATION CATHETER)
The SWIFT SC Balloon Catheter is a semi-compliant pre-dilatation catheter engineered for optimal crossability and pushability. Its flexible, tapered tip and advanced hydrophilic coating ensure seamless navigation through challenging and tortuous anatomies, reducing the risk of vessel trauma. The catheter's high radiopacity, facilitated by integrated markers, allows for precise positioning and real-time monitoring during the procedure. Designed with a low-profile, the SWIFT SC Balloon Catheter offers reliable performance in complex lesions, making it an essential tool for effective pre-dilatation and optimal stent delivery.
Technical Specification
SWIFT SC Balloon Catheter
Distal Shaft Outer Diameter
0.90 mm
Proximal Shaft Outer Diameter
0.72 mm
Guidewire Compatibility
0.014″, 0.018″, 0.035″
Nominal Inflation Pressure
8 ATM
Rated Burst Pressure
16 ATM
Sheath Compatibility
Compatible with 5F to 7F sheaths
Balloon Diameter Range
1.00 mm to 4.00 mm
Usable Catheter Length
100 mm, 245 mm, 900 mm, 1414 mm
Crossing Profile
Low-profile design for improved crossability
Tip Profile
0.016″
Marker Bands
Two platinum iridium markers
Balloon Type
Semi-compliant
Catheter Design
Rapid Exchange, flexible with advanced hydrophilic coating
Product Description
The SLEEK NC Balloon Catheter is a state-of-the-art post-dilatation catheter engineered for optimal performance in coronary interventions. It features a durable, non-compliant balloon made from proprietary material, providing high pressure capability and controlled inflation, ideal for various dilatation needs.
Key features include:
- Superior Trackability: The highly flexible catheter shaft and ultra-smooth transition area allow the catheter to navigate complex and tortuous anatomies with ease.
- Tailor-Made Design: The sleek polymer finish prevents collision with stent struts, while the direct torque transmission design ensures superior steerability and control.
- Enhanced Pushability: The catheter’s low profile, combined with a new jacketed hypotube, offers excellent pushability and progressive flexibility, especially in the distal area.
- Friction-Free Performance: A lubricious hydrophilic coating minimizes friction, ensuring smooth device navigation.
- Ergonomic and Safe: A transparent hub facilitates safe connections, with proximal marker bands at 90 cm and 100 cm for accurate positioning.
Technical specifications include a 0.90 mm distal shaft outer diameter, 0.72 mm proximal shaft outer diameter, and compatibility with 0.014” guidewires. The catheter supports a nominal inflation pressure of 10 ATM and a rated burst pressure of 18 ATM, with two platinum iridium marker bands and a tip profile of 0.016.
Guidewire Compatibility
Guiding Catheter Compatibility
0.014″
5F
0.018″
6F
0.035″
7F
