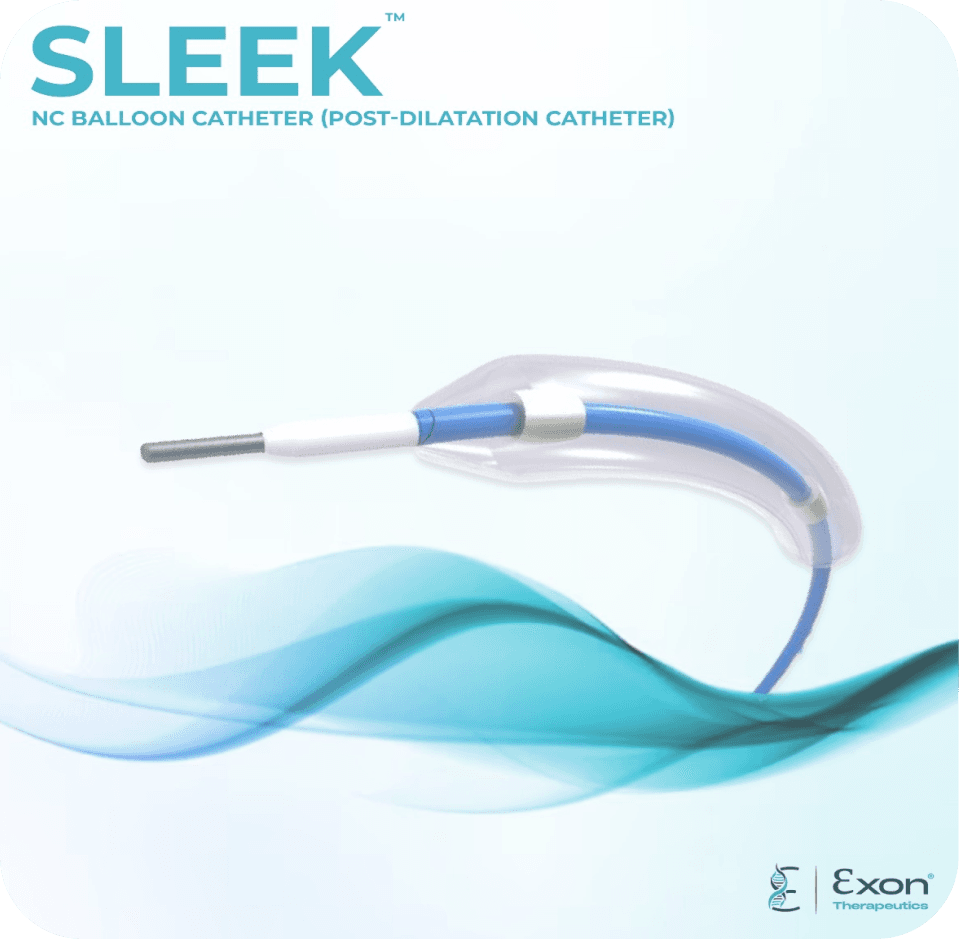

SLEEK NC BALLOON CATHETER (POST DIALATION CATHETER)
The SLEEK NC Balloon Catheter is a high-performance post-dilatation catheter designed for precise control and durability in coronary interventions. It features a non-compliant balloon that delivers focused and consistent inflation, making it ideal for achieving optimal stent expansion. The catheter offers excellent trackability, allowing it to navigate complex and tortuous anatomies with ease. Its sleek, low-profile design minimizes the risk of collisions with stent struts, ensuring safer and more effective procedures.
Technical Specification
SLEEK NC Balloon Catheter
Balloon Compliance
Non-compliant
Distal Shaft Outer Diameter
0.90 mm
Proximal Shaft Outer Diameter
0.72 mm
Crossing Profile
0.8 mm to 1.4 mm
Guide Catheter Compatibility
0.058”/5Fr
Guidewire Compatibility
0.014”
Nominal Inflation Pressure
10 ATM
Rated Burst Pressure
18 ATM
Marker Bands
Two platinum iridium markers
Tip Profile
0.016
Product Description
The SLEEK NC Balloon Catheter is a state-of-the-art post-dilatation catheter engineered for optimal performance in coronary interventions. It features a durable, non-compliant balloon made from proprietary material, providing high pressure capability and controlled inflation, ideal for various dilatation needs.
Key features include:
- Superior Trackability: The highly flexible catheter shaft and ultra-smooth transition area allow the catheter to navigate complex and tortuous anatomies with ease.
- Tailor-Made Design: The sleek polymer finish prevents collision with stent struts, while the direct torque transmission design ensures superior steerability and control.
- Enhanced Pushability: The catheter’s low profile, combined with a new jacketed hypotube, offers excellent pushability and progressive flexibility, especially in the distal area.
- Friction-Free Performance: A lubricious hydrophilic coating minimizes friction, ensuring smooth device navigation.
- Ergonomic and Safe: A transparent hub facilitates safe connections, with proximal marker bands at 90 cm and 100 cm for accurate positioning.
Technical specifications include a 0.90 mm distal shaft outer diameter, 0.72 mm proximal shaft outer diameter, and compatibility with 0.014” guidewires. The catheter supports a nominal inflation pressure of 10 ATM and a rated burst pressure of 18 ATM, with two platinum iridium marker bands and a tip profile of 0.016.
Guidewire Compatibility
Guiding Catheter Compatibility
0.014″
5F
0.018″
5F
0.035″
7F
